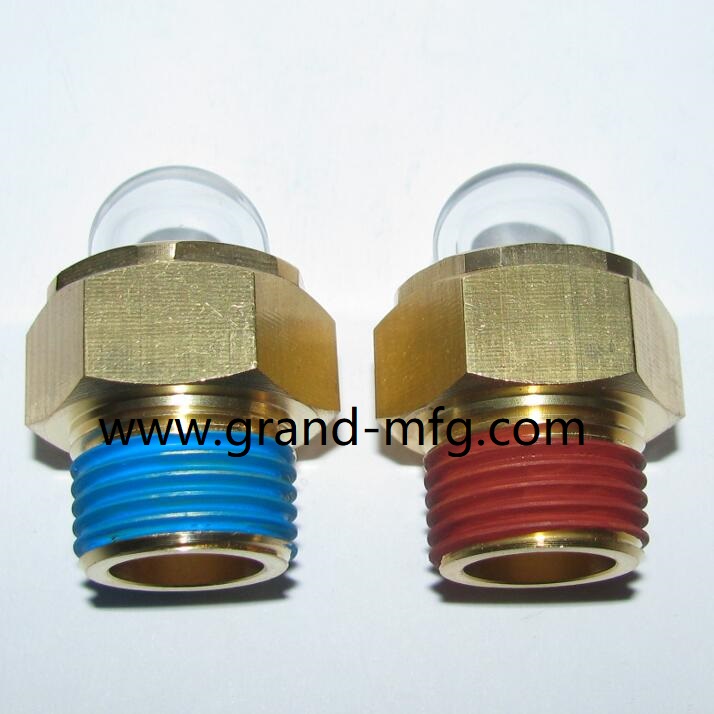

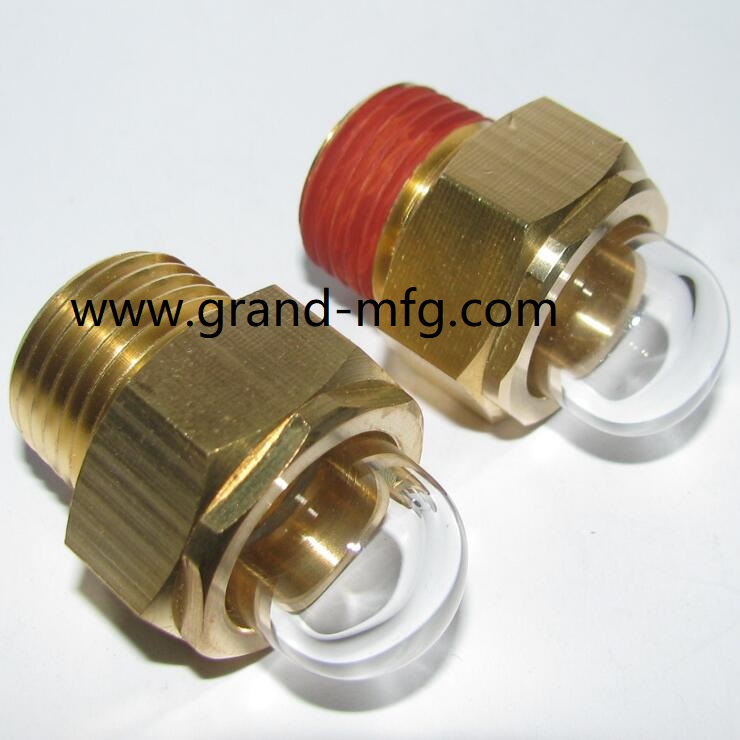

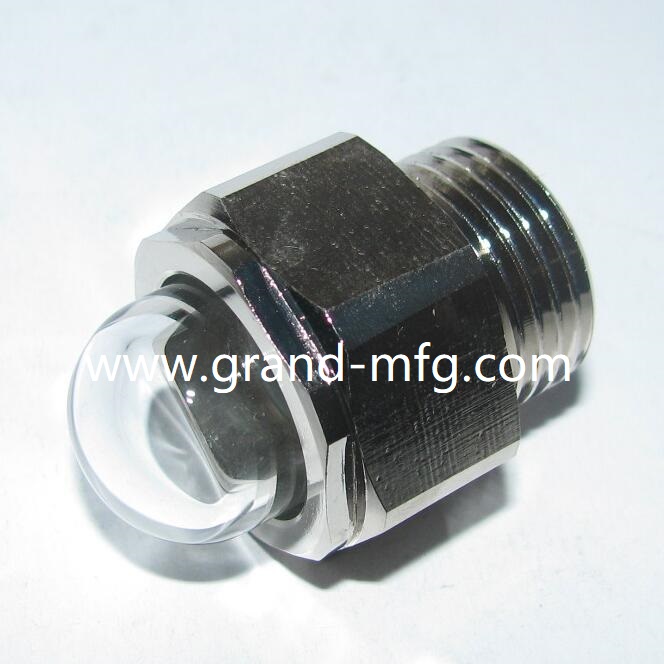

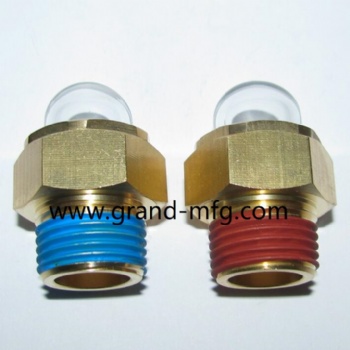

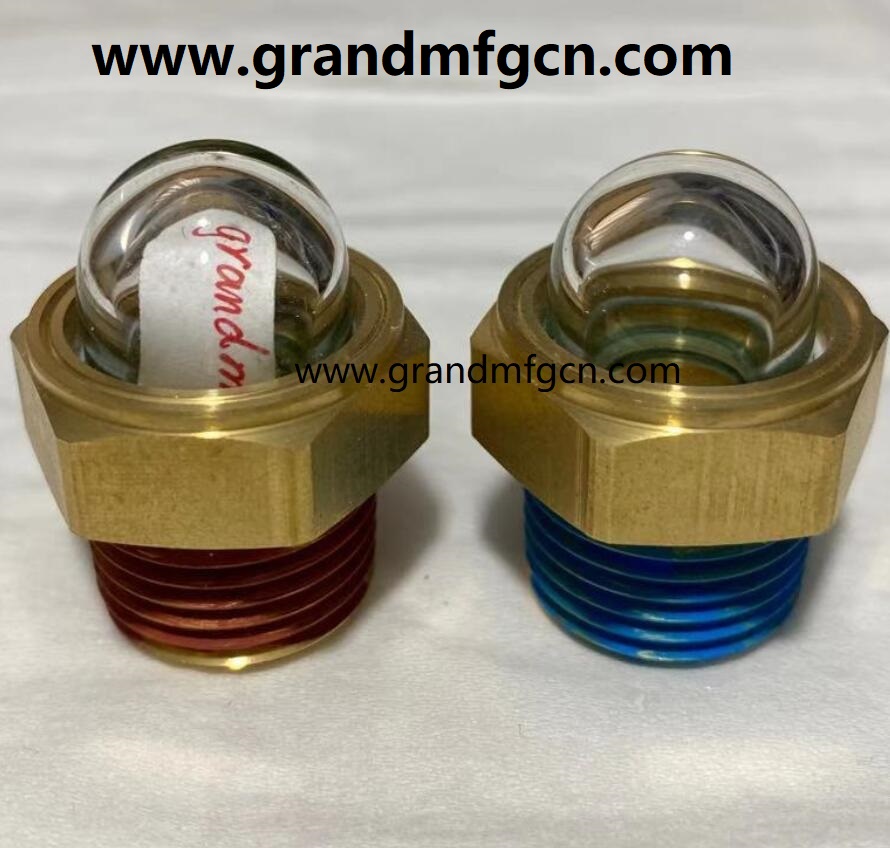

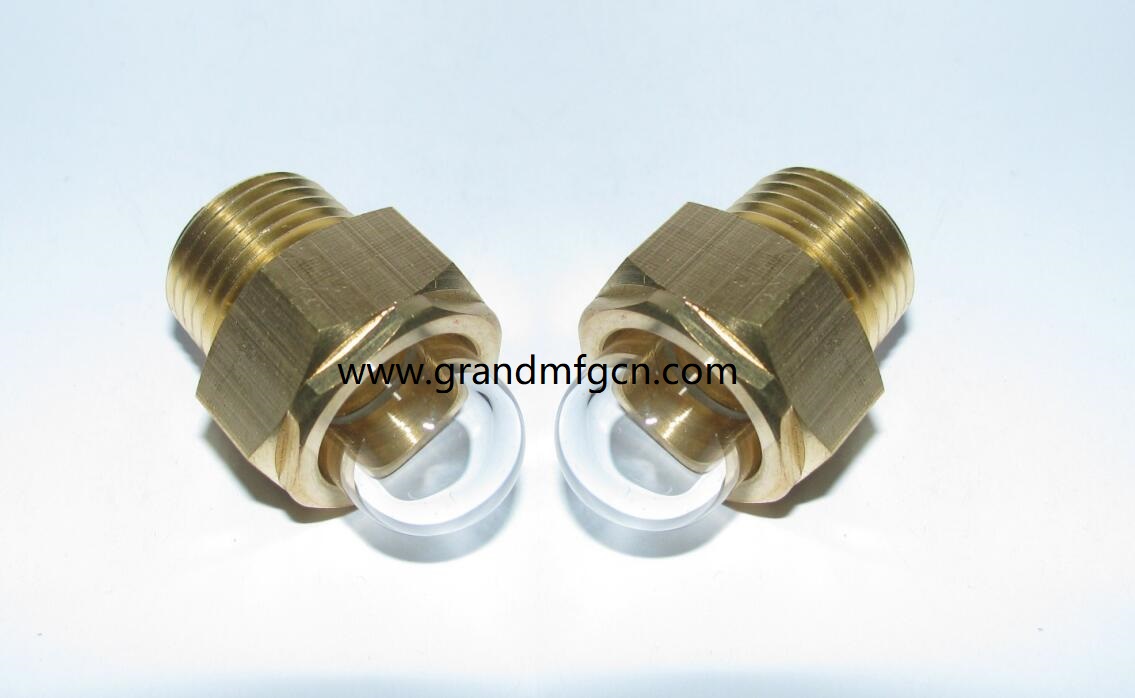

GrandMfg® Domed Hexagon Brass Oil Sight Glass plugs (NPT,BSP & Metric Thread)

Domed shape Brass Oil level sight glass,Bulls eye Sight Glass,Fluid level Sight Glass,Circular oil sight Glass

Oil level indicator sight glass,oil sight gauge,Oil sight windows,Visual level sight glass

Visual level indicator,Visual level sight gauge,domed shape sight glass.

Material Body:   Brass

O-Ring: Viton,FKM,NBR, Aramid gasket and Copper seal

Glass Thickness: 2mm to 5 mm

Reflectors: Stainless Steel 304 Reflector

                 (Any type you can chose with reflector or without Reflector,  You also can add float ball.)

Glass Type: Natural Glass,Tempered Glass and Borosilicate Glass

Resist Tempreature Range:-30'C to 120'C

Pressure Range:  5-10 Bar(0.5MPa to 1 MPa).

Thread type:NPT,NPTF,UNC,UNF,Metric and BSP(G thread)

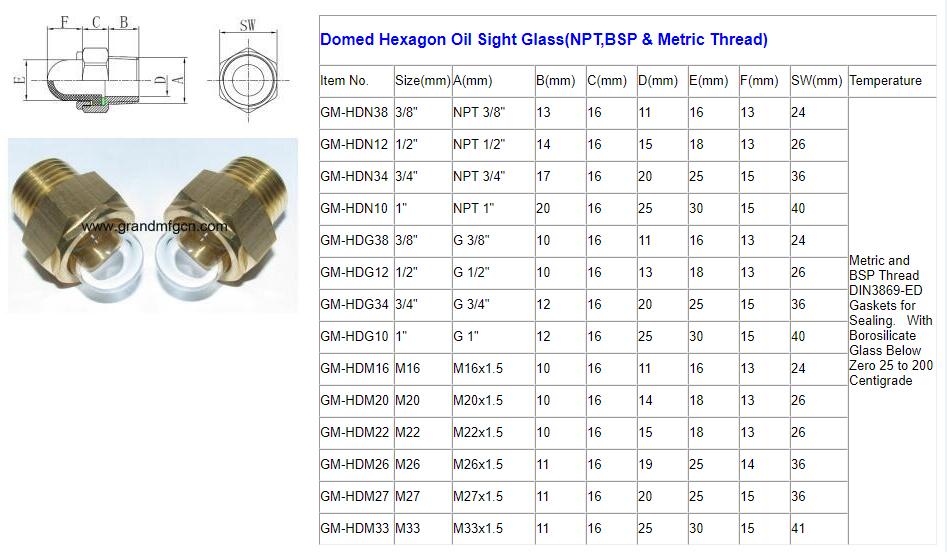

Size： Below you will get the size you wanted.Another size is okay.OEM are welcome.

Usage:  Pump,Oil Receivers,Gearboxes,Speed Reducer,Compressor and Power Transimission.
